Tag: hard start

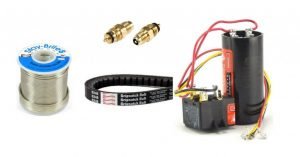

When I started in the trade I would see these devices (above) in the field and I would hear guys call them a PTC or a “Soft Start” and I just accepted it and moved on. In fact, I’ve been calling PTCR (Postive Temperature Coefficient Resistors) a “soft start” for most of my career.

Turns out I was wrong

A PTCR is just a resistor (thermistor) that increases in resistance as it heats up. It connects from run to start in parallel with the run capacitor and allows a surge of current the start winding of a motor when it starts. When the PTCR heats up, the resistance inside increases and it essentially takes itself out of the circuit.


A PTCR by itself does allow a spike of current to the start winding but it does not create a phase shift. This is why some devices add a start capacitor and just use the PTCR as the “relay” to take it out of the circuit like the products shown above. It is a start device… but there is nothing “soft” about it.


Then there are the more traditional hard start kits that use the tried and true start capacitor and potential relay instead of a PTCR. This serves the same basic purpose, increase current and phase shift to the start winding for a fraction of a second and then remove it from the circuit. It just does the “removal” part of the equation in a more precise manner.

All of these technologies serve to increase current to the start winding quickly then drop out

The idea is to get the motor to 75% to 100% of running speed as QUICKLY as possible by increasing start winding current and phase shift.

There is a good reason for this. When a motor is stationary or running at low speed, it’s windings act as low resistance resistive loads, essentially really high amperage heaters. The longer the motor spends trying to start at full voltage the higher the current it will draw and the hotter the windings get.

Hard start devices can do nothing to actually reduce the current the motor draws when it is at locked rotor (stalled), the hard start device simply gets it out of that stalled / low RPM as quickly as possible.

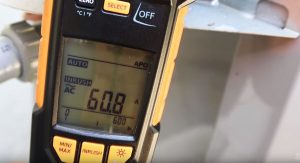

Many of you may note that when you measure inrush current with a hard start in a place that it will show lower than when it is not in place. This is simply because a hard start shortens the time the motor remains in the locked rotor, not because it actually reduces the starting amps.

There are also some concerns about the added torque that a hard start provides over such a short time period and the side effects of that “torque shock” to the internal components of the compressor as well as the connecting copper lines.


Soft Start

Different methods of “soft starting” have been in use in large 3 phase motors for a long time. The purpose is the start a motor more slowly and therefore reducing the current inrush.

The devices shown above are single phase soft start devices. They reduce the voltage during starting to reduce the current associated with the start. These devices carefully control the voltage and therefore the current applied to the start and run windings to provide a lower initial current during start and slowly increase up toward full speed. These devices require advanced algorithms to do this which makes them significantly more expensive than the traditional hard start technologies and they are not capable of producing a large shifted / current boost to a start winding like a hard start.

This means that while a soft start is a great device to help reduce light flicker, decrease start amps and increase compressor life, it is unlikely that it will start that old, stuck compressor.

Soft starts and hard starts both serve a purpose but what they do and how they do it couldn’t be more different.

Have an old, locked compressor? Hard start is likely the best bet. If you have a complaint that lights are dimming on compressor start? A soft start will give a better result.

— Bryan

Here is a pretty dramatic demonstration of hard start and soft start HERE

And a great application guide on soft start HERE

I have spent most of my career being afraid of hard start kits, I heard too many horror stories of start caps exploding and sales technicians telling every customer they need one.

It dawned on me recently that it may be time for me to take a more mature look at start capacitors, potential relays, and hard start kits and find some best practices.

First, be aware that not everything commonly called a “hard start” is the same thing. The bottom of the barrel is called a PTCR which is essentially just a resistor that starts off at a low resistance when cool and changes to higher resistance when it gets hot. It creates a direct path from L2 (run side) through the start winding and as soon as it heats up, the higher resistance essentially removes it from the circuit. This is NOT the same technology as a start capacitor in any way and in my experience, they don’t work well and are prone to failure, at least in air conditioning systems.

There are also electronic and timer type “start kits” that utilize a capacitor but remove it from the circuit using a timer.

However, the most traditional and time tested method of start assisting a compressor in HVAC in the good old start capacitor and the potential relay.

Let’s start with how they work.

Photo Courtesy of Rectorseal

When a compressor first starts up, it requires a lot of torque to get from 0% up to 75% of running speed, especially when it has to start under pressure load (unequalized pressures). A start capacitor is designed to create the optimal phase shift for that first 75% of synchronous speed. A run capacitor is sized to create an optimal phase shift for a compressor that is running at full speed and at full design load because the run capacitor never comes out of the circuit.

Photo Courtesy of Rectorseal

While a run capacitor has heat dissipation capability for constant duty a start capacitor MUST be taken out of the circuit VERY quickly to avoid melting down as well as causing compressor damage.

The start capacitor is REMOVED from the circuit by a relay called the potential relay. The potential relay is normally closed and it OPENS when a sufficient PICKUP voltage is present between the 5 and 2 terminals on the relay. This pickup voltage is potential (voltage) that exists in the start winding when a motor gets above about 75% running speed and it is GENERATED in the start winding by the motor itself NOT the capacitor.

A capacitor DOES NOT boost the voltage when you see that increased voltage across the capacitor that is back EMF being generated by the motor, just like in a generator (pretty cool huh?).

Once the compressor shuts off the relay then DROPS OUT which closes the contacts again for the next time.

Some hard start manufactures wire the coil on the potential between start and common and some wire it between start and run. You will find that most OEM’s wire between start and common but this does not mean that wiring between start and run is bad… it just needs to be designed correctly for that purpose (Kickstart does it this way for example).

A properly sized start capacitor and potential relay are not BAD for a compressor, they just must be sized and installed correctly and there are some cases where they are more likely to be useful that others. When in doubt a factory start capacitor and potential relay is the best and safest bet.

Cases where they may be very useful useful

  • Long line set applications
  • Hard shut off expansion valves
  • More often on reciprocating compressors than scroll or rotary (but still OK on scroll and rotary when beneficial)
  • on 208V single phase applications

Things to consider

  • Mount the relay properly, there is a proper UP configuration on most potential relays
  • Use hard starts with REAL potential relays not timers, solid state or other relay types (in my experience)
  • Size the relay and capacitor according to manufacturers specs
  • Ensure that you have a good quality, properly sized run capacitor on any system with a hard start

For a complete write up on potential relays, you can read these articles HERE and HERE

Also, we have a podcast out with the technical manager for Rectorseal James Bowman HERE

— Bryan

Now is the part where we get specific about Start capacitors and inrush. If you haven’t read the first three parts please do so before reading this one or it may not make sense.

I’m going to come out and say it so you keep reading.

What you were taught about hard start kits decreasing inrush amperage is wrong.

Look at the oscilloscope image above. It’s a 3 ton reciprocation compressor with equalized pressures and 230V applied. Now keep in mind the voltage value shown here is RMS and the amperage is PEAK so if the amps seem high in these charts that is why.

So this compressor starts up at locked rotor (on the run winding remember) and it gets up to speed at around 180 milliseconds of run time. That is pretty typical of a good, equalized compressor under normal conditions.

Sometimes compressors do struggle to start and this can be due to.

  • Low input voltage (usually due to voltage drop)
  • Starting unequalized due to short cycling and or non-bleed (Hard Shut Off) expansion valves
  • Long line lengths
  • Refrigerant migration into the crankcase
  • Compressor wear

Here we show a system with low voltage applied (187v) and it HAS a hard start in place (not necessarily the same compressor as the last so don’t try to compare apples to apples)

In this case, the compressor doesn’t get up to speed until about 550 milliseconds and at that point both the run and start winding amperage drops.

This proves that the hard start kit is working in that case.

You can tell this because the only amperage that can enter the start winding is dictated by the run and start capacitors and like we said before… the capacity of a capacitor is dictated completely by the capacitance (mfd) and the voltage across it.

For the amperage of the start winding to go UP at 580 milliseconds, it can only be due to an increase in back EMF as that motor gets up to speed. Then at 600 milliseconds, the potential relay removes the start capacitor and the amperage drops down to the run capacitor only level.

Conclusion #1

Fixing a voltage drop issue does more good than adding a hard start kit.

A valuable test is measuring the voltage feeding your compressor with it under load and rectifying poor line voltage connections or undersized conductors.

Look at these two identical compressors, one with a hard start kit and one without.

Techs are often taught that measuring inrush on the compressor common wire is a way to show how a hard start kit decreases startup amps.

This isn’t what we are measuring when we see a big difference in inrush amps.

What we are measuring is how QUICKLY the compressor starts not the true inrush amps at start. I’ve looked at the specs on several high-end ammeters that measure inrush and they read at 100 milliseconds.

If you look at the two examples above the compressor with a hard start will read lower at 100 milliseconds because it is already almost at full speed and the LRA has nearly passed.

LRA (locked rotor amps) is essentially the amperage the compressor runs when the run winding is functioning as a heater rather than a motor. The quicker the motor starts turning the quicker it gets out of the LRA range.

Now consider the start winding. Take a look at the start winding with no hard start…. it stays the same even though the compressor is essentially locked all the way up to 600 milliseconds. So even though the compressor is locked the current through the start winding is limited to what the run capacitor can hold and release.

With the hard start in place, the start winding amperage peaks right up until the potential relay takes it out at 100 milliseconds.

The problem is that we use tools that measure at 100 milliseconds when that may be before or after the motor has hit that 80% speed



Conclusion #2

Locked rotor amps are what they are… that’s why the manufacturer can publish it on the data tag. It’s the amperage that motor will draw when it’s locked at the rated voltage.

When we measure inrush with a meter we are really just taking a snapshot at a particular point in time that may or may not line up with what the manufacturer published depending on how close the motor to full speed at that time.

Conclusion #3

Hard start kits don’t decrease starting amps at the moment of start, they can’t.

What they can do is reduce the time it takes to get the motor started, So in a time-averaged sense, a hard start kit very well may reduce amperage and wattage.

This is why a hard start is often specified for long line applications and non-bleed TXVs. It’s also why Techs have found that adding a hard start can reduce light dimming complaints by speeding up the amount of time the compressor remains at LRA.

Conclusion #4

Hard start kits do increase the current on the start winding, in fact, that’s essentially all they do differently than a run capacitor. They both provide a phase shifted current to the start winding, a start capacitor just does MORE of it.

The argument that hard start kits reduce wear and stress on the start winding is false. With no hard start the load on the start winding is constant and very low. Adding in a hard start adds in more current at start and the possibility of potential relay sticking that can definitely cause start winding stress.

This isn’t to say start kits are a problem when sized properly. They can and do reduce LRA on the run winding by adding more phase shifted current to start.

Conclusion #5

Start capacitor sizing and potential relay voltage ratings are really important and should be selected to do the job of starting the compressor quickly without staying in too long or providing more start winding current than needed.

— Bryan

This series of articles is one of those that will bug a lot of people because it will go against a lot of what you’ve been told about compressors, start capacitors and inrush current. It is for this reason that I want you to work through a few thought experiments first and maybe even stop and try it on your own unit before you get worked up.

Thought Experiment #1 – A Capacitor as a Balloon or Membrane

A capacitor stores electrical energy, the amount of electrical energy stored depends on the pressure (voltage) across the capacitor as well as the size of the capacitors (Measured in Microfarads for our purposes).

Think of the capacitor like a membrane that a water pump pushes against. Water can’t go through the membrane but it can be “stored” in the membrane to some extent on the higher pressure side. If the membrane is larger (Higher microfarads) or if the pressure differential across it is higher (Voltage) then the capacitor can hold more energy.

In alternating current the pressure shifts from positive to negative 60 times per second (60hz) so that stored energy builds up and is released to and from the capacitor back and forth 60 times per second but at 90 degrees out of phase from the way the energy would be distributed if there were no membrane at all.

The point of this analogy is to anchor the reality that the amount of “water” that can move in and out of this membrane is completely dependant on the size of the membrane (capacitor) and the pressure (voltage) across it.

Wanna test for yourself? connect 120v from a plug across a 20mfd capacitor and measure the amperage. Then do the same with a 40mfd capacitor and measure the amperage. Do it safely with proper PPE of course, but what do you think you will find based on the analogy of the membrane?

Remember, current is just a measure of the quantity of electron flow. The larger capacitor will show a higher current even though no real “work” is being done by that current. It is just moving in and out of the capacitor like a pressure tank.

Thought Experiment #2 – There is no “Common” winding

What happens when you walk up to a residential system and the run capacitor is failed open when there is no start capacitor?

The compressor draws “Locked Rotor Amps” amps on the common right?

But what is common? it is the point that connects the start and run windings, then connects to the C terminal on the compressor after going through the thermal overload.

The common is a point that connects back to the line but it is not a “winding”, there are only two windings (wraps of copper wire around the motor stator) and those are run and start.

When the system has a failed run capacitor and you measure “LRA” on common, what do you think the amperage will be on Run? What about Start?

Try it next time you have a failed capacitor, or go out and safely disconnect your run capacitor and test.

Your run and common will read exactly the same (what goes in must come out) and your start will read zero amps. This is pretty obvious and intuitive, if your capacitor is failed the only winding in the circuit is the Run so common and run will be the same. The start winding can have no amperage because the capacitor is failed open.

So the current on the start winding of a single phase compressor is completely dependant on whether there is capacitor in the circuit and the size of that capacitor.

Part #2 is coming tomorrow…

— Bryan









I was at the AHR conference today walking around and I stopped at the booth of a popular hard start kit manufacturer (especially popular with white shirt sales techs). I listened to the guy behind the booth “training” some municipal maintenance techs on the use of his hard start kit, and to be fair, I actually think it’s a decent kit.

However, I have an issue with what he KEPT SAYING over and over. He kept calling the C terminal on the compressor and the 5 terminal on the potential relay (hard start relay) a “ground”. He even said and I quote here “A 2 wire kit has no ground and should not be used. If you find one like that just tell the customer it has no ground and they will understand it’s unsafe and should be replaced”.

Facepalm

Common and ground are not the same, they have no relation. Common is the common point opposite the run and start terminals, it has nothing to do with ground. Ground is a connection to ground and has everything to do with creating a safe path to ground in the case of short to prevent YOU from becoming that path and killing you.

This is one way that well meaning people become techs that end up on the news for ripping off grandma.

Once again. I actually agree that 3 wire start kits are the way to go. Just don’t call common ground like a thousand times.

End rant.

— Bryan
