At the time of the publication of this article, COVID-19 (coronavirus) is spreading across the world at an alarming rate, and many people have self-quarantined to help slow and/or stop the spread of the virus. These precautionary measures are prudent and responsible. However, with the increased amount of time people will now spend inside their homes, there is a hidden factor to be aware of, which many people won’t think about. The prolonged occupancy of homes with increased cooking, bathing, and cleaning time will significantly impact the indoor air/environmental quality of these homes. An issue like this may not be measurable, but it is inevitable. In a time when many technicians, companies, and manufacturers will use this health crisis as a way to promote the sale of IAQ products in ways that can only be judged as unethical, it is imperative to the honest and curious technician to understand how to do her part in educating customers, and keeping everyone healthy.

This article will stay away from talking about specific types of boxed devices out there that “purify” the air, because that’s a topic for another day. The focus here is on the three main processes available to technicians and homeowners to improve indoor environmental conditions. Taking these one by one, technicians should have a thorough crash-course understanding of each and its importance to indoor air quality (IAQ). Ventilation, Filtration, and Humidity Control.

The first step in understanding a healthy indoor environment is to recognize the villains one must fight against in order to keep an environment healthy. Particulate Matter (PM), Volatile Organic Compounds (VOCs), Humidity (high or low), Carbon Monoxide (CO), Carbon Dioxide (CO2), Ozone (O3), etc. are just a few. These are the elements that tend to concentrate themselves in tight indoor environments. Each of the “Holy Trinity of IAQ” is designed to deal with these undesirables in their own dedicated way.

Everyone should know what a bath fan is. If you don’t have a bath fan, you probably live in a house not updated since the 1970s, and you likely have other decor issues to deal with as well. Bath fans are the most common mechanical ventilation in homes today. They are a form of negative pressure ventilation. As the fan pulls air from the room and expels it (hopefully not in your attic), this creates a negative pressure on the building envelope, and air from outside is pulled in through the cracks and crevices around your windows, door frames, attics, and through Jerry’s mouse hole…which everyone has…right? This type of ventilation is by far one of the least desirable, because you exact zero control over the quality of air you are bringing into the home. The air could be high in humidity and temperature, or it could be passing through layers of blown-in insulation inside your attic; neither of which are ideal. Air from these places isn’t really fresh.

The general consensus is that positive or balanced pressure ventilation is best. Examples of positive pressure ventilation include Make-up air units (MAU), Dedicated Outdoor Air Systems (DOAS), and the use of a scuttle (a small duct run from outdoor air into the return ductwork for HVAC systems). Balanced pressure ventilation is accomplished through mechanical equipment like Energy Recovery Ventilators (ERV), Heat Recovery Ventilators (HRV), and Conditioning Energy Recovery Ventilators (CERV). Each of these technologies has their advantages and ideal applications. The reason positive/balanced ventilation is desirable is for its ability to control the fresh air. If you can control the air you breathe, you can keep it “fresh”. For all of these options, there are applications for which they can be used that actually improve upon the quality of the air entering the space. But why do we care about ventilation? What’s so important about it?

Houses used to be built loosely. This isn’t to say they were built poorly, but houses used to be loose enough to allow for tons of natural ventilation. The codes and standards have evolved, and we now construct assemblies more airtight than in the past. This is why the EPA has published that indoor environments are often 2-5 times higher concentrations of air pollutants than outdoor levels, and can reach upwards of 100 times worse! This is because as people bathe, clean, and cook, VOC concentrations, Particulate matter, and humidity levels increase dramatically. People thought bath fans were for bathroom odors, but really that’s just a nice side-effect. They are for removing water vapor during and after showers/baths. Ventilation is utilized to dilute VOCs, CO, CO2, and other chemicals in order to maintain a comfortable indoor environment. I know of people who grew up watching their mother open all the windows of the house for a couple hours a week in order to “flush” the house. Mechanical ventilation is just like that, except more controllable and technologically advanced.

Particulate Matter is another indoor environment characteristic, which can cause a variety of health concerns. Particulate matter is categorized by its size in diameter, which is measured in micrometers (or microns). A lot of buzz is generated around PM 2.5, which is particulate matter with a diameter of 2 and a half microns; that is due to PM 2.5’s ability to do major damage to the human respiratory system. To give you an idea of the size of PM 2.5, the EPA has published that PM 10 is considered inhalable. PM 2.5 is 75% smaller than that! This means PM 2.5 tends to stay in the air stream longer than larger, denser particles. However, PM 2.5 is not the smallest particulate matter that can potentially do harm. PM 1 and 0.5 are also in the air, and they can easily make their way to our lungs and bloodstream. In order to combat against these airborne particles, it is important to filter the air with a high-quality air filter. There are filters designed to trap PM 2.5 and smaller (MERV 11 up to HEPA), and they are a critical component to any air distribution system. The third edition (2018) of the EPA Technical Summary of Residential Air Cleaners states that a MERV 13 is recommended for every HVAC system, or as high a MERV rating as the system will allow.

EPA Technical Summary: Residential Air Cleaners (2018)

It is important to note that Particulate Matter does not refer to just dust. Particulate matter can be made up of pollen, viruses, bacteria, fibers, fungal spores, vehicle exhaust, etc. This fact makes it clear that filtration is not only important for the HVAC system, but also for the incoming air to any mechanical ventilation system. Humans are constantly submerged in this fluid called air. We must give more thought to the quality of the air we breathe.

The final head of our three-headed IAQ dragon is Humidity Control. This can refer to either high or low humidity levels. Either extreme is unhealthy and can create an environment prime for health risks. On one hand, high humidity can cause respiratory issues, encourage dust mite life, allow viruses and bacteria to increase, allow VOCs to become airborne, allow increased chemical reactions, and allow microbiological growth to take place. On the other hand, low humidity levels can also cause respiratory issues, irritate mucous membranes, allow viruses and bacteria to increase, and allow for the production of ozone. The happy medium is the generally accepted ideal humidity index, which falls between 35%-60% relative humidity.

In order to control humidity indoors, a technician must be aware of her climate zone, and whether she must work to increase or decrease humidity levels indoors in relation to outside levels. For arid climates, humidification is necessary, and options such as higher airflows and in-duct steam humidifiers are great solutions. For humid climates, running lower airflows and adding mechanical supplemental dehumidification is ideal. Some dehumidification systems allow for ventilation as an option, and they include a high MERV filter to cover all the bases. This option is an ideal solution for certain applications. Humidity must be controlled in an occupied space for that space to be comfortable. People are much more sensitive to humidity than temperature.

Looking at these three paths to creating and maintaining healthy air inside a home, it is important to realize these are Indoor Air Quality solutions. To create and maintain a fully comfortable indoor environment, air leaks, insulation, and load matching are other issues that would need to be addressed. However, in addressing the current issues with air quality in homes, this “Holy Trinity” is all any technician needs to exert energy into in order to help keep occupant air clean. There is a mindset that humans are never more intimate with their surroundings than when they inhale the air into their bodies. Technicians must take action to educate consumers and recommend the most effective solutions for IAQ improvement.

There are many companies and manufacturers using this health crisis to promote the sales of popular air “purifiers”, which use chemistry to “clean” the air in lieu of ventilation, humidity control, and filtration. The technology of these products will be discussed in a later article, but the most important take-away at this juncture is how important it is to maintain control over the humidity, the outdoor air coming into the space, and the concentration of particulate matter in the air stream. The methods of dealing with the issues mentioned in this article are the only methods that have been time and volume tested over decades, and they have standards in place to help ensure their effectiveness on IAQ.

So what do technicians do right now? Many homeowners may not want to spend the money on advanced in-duct filtration, mechanical ventilation, and humidity control during this time of uncertainty. Joe Medosch from HaywardScore.com has shared a very ingenuitive and affordable solution for many people to effectively filter indoor air.

This DIY method is a great way to help encourage homeowners to remain healthy as they spend more time inside their homes. This “box fan filter” may also make it more viable for sensitive people to open their windows and doors for longer periods of time during pollen season, as this enhances the circulation of air inside, and adds filtration throughout the home. Another recommendation for homeowners is to utilize the bath fans and kitchen exhausts as a way of ventilation. ALWAYS run a bath fan during bathing activity, and continue to run it 10-15 minutes afterward in order to prevent as much water vapor as possible from remaining inside the home. Portable dehumidifiers and humidifiers are also available.

Another recommendation for every technician, business, and the homeowner is the use of IAQ monitors throughout the home. Real-time monitoring and translation of data over time allows people to see the effects of their activities on IAQ. For technicians and businesses, it is a great way to track the effectiveness of your work over time. Without measurements and testing, you can only guess!

As we work together to combat the spread of viruses in our communities and around the world, the HVAC/R industry has a large opportunity to help educate customers on how to create and maintain a healthy indoor environment. We must take care to avoid fear-mongering and sales tactics geared toward the exploitation of people’s vulnerability and miseducation. Practice integrity, do your research, and implement industry best practices always



– Kaleb



The Four P’s of IAQ

I’m not the first, second, or probably even the thirty-second person to write about improving indoor air quality problems by using the four P’s approach. It’s a well-known thought process in the building science community- not sure if that’s the case in HVAC circles.

The first P is pollutant. In this context, a pollutant is something that contaminates the air. It can be one or more of many things. Mold, moisture, animal feces, harsh chemicals, are some of the more common ones in an average home. If you remove the pollutant, there is no longer an IAQ problem.

The next P is pressure differential. If the pollutant can not be removed, creating a pressure differential will prevent it from entering or spreading throughout the occupied area… But you already know this, that’s why you turn on the fan when going to the bathroom, or the range hood while cooking.

Another P is pathway. If there is a pollutant, with an unfavorable pressure differential, there still needs to be a pathway to the occupants for that pollutant to become an issue. Eliminate the pathway and the pollutant can be contained.

The last P, but definitely not least is people. You’ve heard this before- If a tree falls in the middle of the woods does it make a sound? Well, If there is a pollutant with a pathway and a pressure differential but no people is it an really an IAQ problem?

In short, it’s always best to deal with the source of the IAQ problem, but if you remove any one of the four “P’s” there will be an air quality improvement.

— Neil Comparetto, Co-owner of Comparetto Comfort Solutions in Virginia

MATLAB Handle Graphics

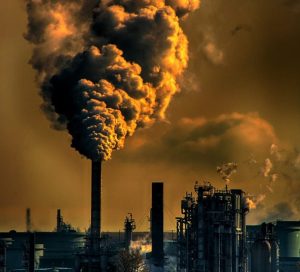

It was December 5th, 1952, only seven years after the end of WWII in London England when the “great smog” settled across the city.

It was a meteorological anomaly combined with unchecked industrial pollution that led the great smog, but even once it settled on the city, bringing business to a screeching halt, everyone thought it pass quickly.

It didn’t.

Four days later the smog finally lifted, and the death toll rose to 4,000. Many modern statisticians place the number of deaths caused by the smog at closer to 10,000. While the world knew the dangers of particles in the air before, there was a keener understanding of what pollution in our air can do to us since that time.

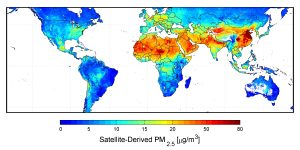

Nowadays you will hear the terms PM2.5 and PM10 thrown around and you may never stop to think about what they mean.

PM10 (Particulate Matter < 10 Microns)

Particles with a diameter less than 10 microns across. For some perspective, a human hair is about 50 – 70 microns across and a micron often called a micrometer is one-millionth of a meter. While a PM10 particle is tiny it still pretty coarse by particle standards and will often contain things like dust, dander, and pollen. These are allergens to be sure but generally, are not the most dangerous particles.

PM2.5 (Particulate Matter < 2.5 Microns)

These are particles less than 2.5 microns and often contain things like Ammonia, Carbon, Lead, and mold. Both chemically and biologically toxic particles generally fall into this smaller 2.5 microns or less size range.

Zhao D, Azimi P, Stephens B – Int J Environ Res Public Health (2015)

In the graph shown above, you can see the results of the % of PM 2.5 sized particles that passed through some various tested filters. The study showed that not only that typical MERV 6 – 8 filters failed to do a good job of capturing a large percentage of these particles. It also showed that the efficiency of the filters varied from brand to brand as shown in MERV12(#1) and MERV 12 (#2).

Indoor / Outdoor

There is a clear link between pollution outdoors and pollution indoors. It stands to reason that if the air outside is dirty, then the air inside will also tend to more particles in it which means that a comparison of outdoor PM2.5 to indoor PM2.5 comparison can be a better way to compare one space to another.

The EPA has tested and found that indoor air can be significantly more polluted with VOCs (Volatile Organic Compounds) often 2 to 5 times more than outdoors.

But hang on…

VOCs are gaseous and are not the same as PM2.5 particles and shouldn’t be confused with them.

From a technicians perspective, you need to be aware that typical air filtration will only effectively deal with the PM10 and larger particles. For the PM2.5 you will need high MERV filtration or other types of active filtration such as PCO or Ionization strategies.

For VOC’s you can ventilate, use carbon filtration or look into products like the Air Oasis bi-polar ionizer that has been shown to reduce VOCs in studies.

Testing for what exactly is in the air is a trickier business then I initially thought and get’s tougher the smaller the particles get. Even today it is virtually impossible to “test” for specific live fungus, bacteria, and VOCs in the field. You can count particles and get in the ballpark of the issue but nailing down all the details can be challenging without sending samples off to a lab.

For most of us, a good particle counter is the best we are going to get out in the field, and we are best off following some good solid practices to help our customers.

  • Encourage your customers to use good quality filters. When possible install MERV12 or better
  • Make sure the unit isn’t pulling air around the filter or through the panels
  • Make sure that ducts are well sealed so that the return isn’t drawing in air from an unconditioned space
  • Keep the indoor relative humidity between 30% – 55%
  • Address any localized moisture issues that may be resulting in organic growth
  • Add in well-filtered ventilation air for VOC reduction
  • Make sure the evaporator, blower wheel, and drain pan are kept clean
  • Research quality IAQ products and recommend them based on your customer’s needs and desires
  • Bring in fewer VOCs by using indoor products that are more natural and have had more time to off-gas

The most dangerous stuff in the air are chemicals, tiny particles and live organisms caused by moisture issues. Knowing this will make you better tech and more capable of advising your customers well.

— Bryan

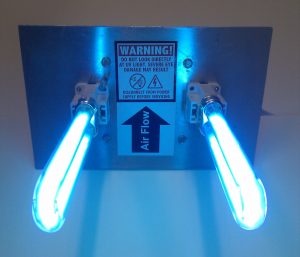

A quick note about UV lights. They work like sunlight in that they prevent and kill many types of bacteria and fungi when exposed to the light on surfaces. They do not generally do a great job of killing spores suspended in the air stream.

UV lights are great at killing yucky stuff on surfaces like coils, blower wheel and panels. They won’t “kill” everything in the airstream and they don’t capture anything.

Also, be careful what UV is allowed to shine on. It will deteriorate most wire insulation and can deteriorate and discolor many other plastics.

Finally, don’t look at a UV light for any amount of time. I once spent a very uncomfortable day in bed after damaging my eyes from looking at UV indirectly for only a few minutes.

UV can be great, but it’s not a fix all and always be carefully where the light is going.

— Bryan
